Portgarth model tug build

The Build - Electrics 1

Electrics - 1

List of Electric Components

2 x 12 volt 7Ah PowerSonic PS-1270 Sealed Lead Acid batteries

2 x Tamiya charging sockets and charging switches

Power Distribution Board with Parallel Charging FE31 (Forge Electronics)

Rudder Mixer FE01 (Forge Electronics)

TD-8320MG Rudder Servo

FlySky FS-i6X 6 Channel 2.4GHz Transmitter with Receiver

2 x Viper Marine 25 ESC (Mtroniks)

2 x P95/1 Indicator Fuse Board (Action Electronics)

8 Channel Independent Control Multi-port Switch

NiMh Battery Pack 5000mAh 7.2v

Raboesch Bow Thruster 108-30 with twin propellers

Viper Marine 15 ESC (Mtroniks)

P95/1 Indicator Fuse Board (Action Electronics)

Mtroniks digisound6D Diesel Tug

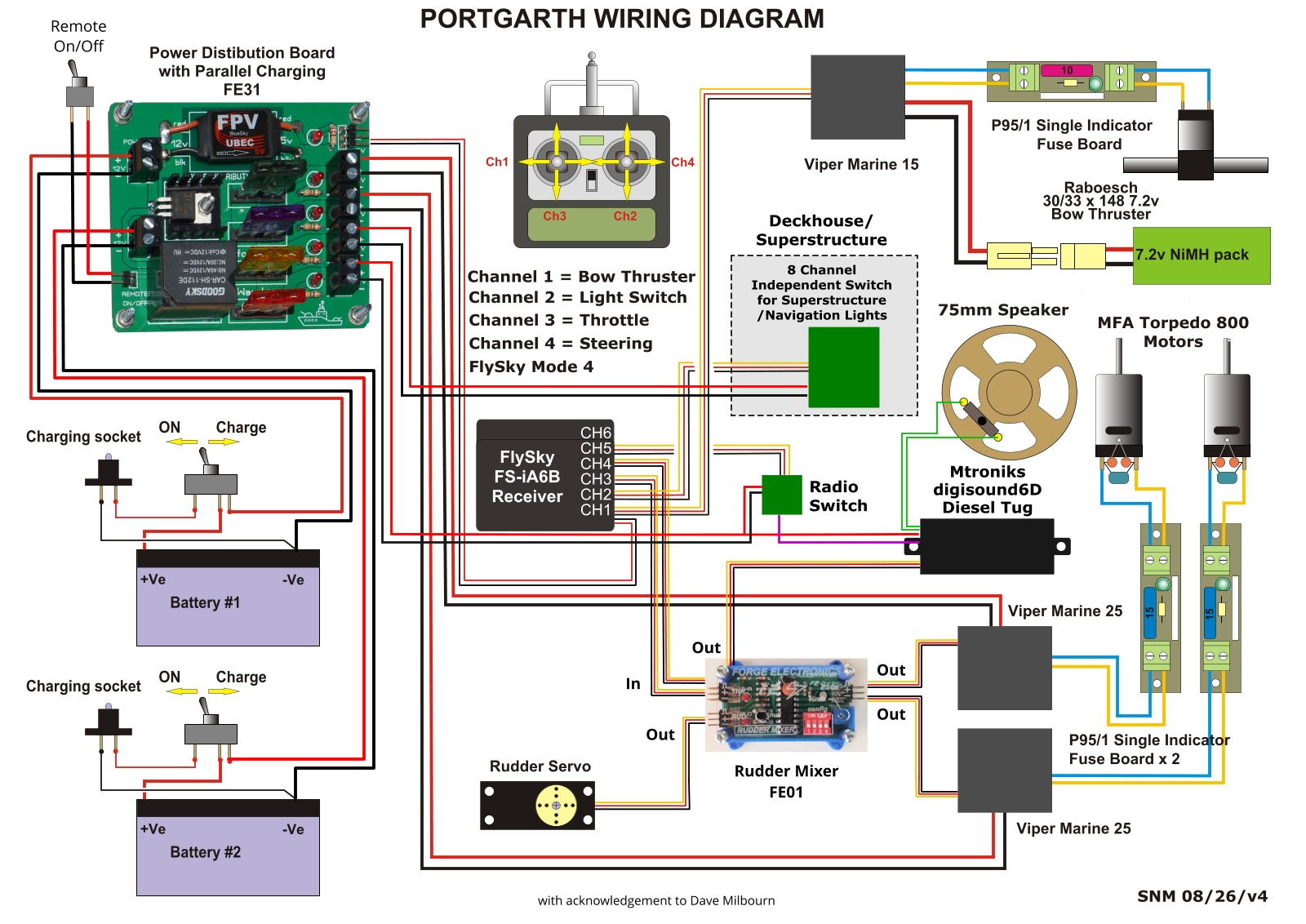

This is the wiring diagram I put together for Portgarth.

Constructing the Wiring Board form Paxolin

Wiring board in place.

Wiring Board and Main Battery Tray in place

Bow Thruster wired up to Fuse and ESC on main battery tray. Bow Thruster battery will be on the tray just for'd of this.
