Electrics - 1
List of Electric Components
2 x 12 volt gel batteries
2 x Tamiya charging sockets and charging switches
Power Distribution Board with Parallel Charging FE31 (Forge Electronics)
Rudder Mixer FE01 (Forge Electronics)
Futaba S3004 Rudder Servo
Saturn XR6 Channel 2.4GHz Transmitter with Receiver
2 x Viper Marine 20 ESC (Mtronics)
P95/2 Twin Indicator Fuse Board (Action Electronics)
6 Channel Independent Control Multi-port Switch
NIMH Battery Pack 4400mah 7.2v
Raboesch Bow Thruster 108-30 with twin propellers
Viper Marine 15 ESC (Mtronics)
P95/1 Indicator Fuse Board (Action Electronics)
|
|
|

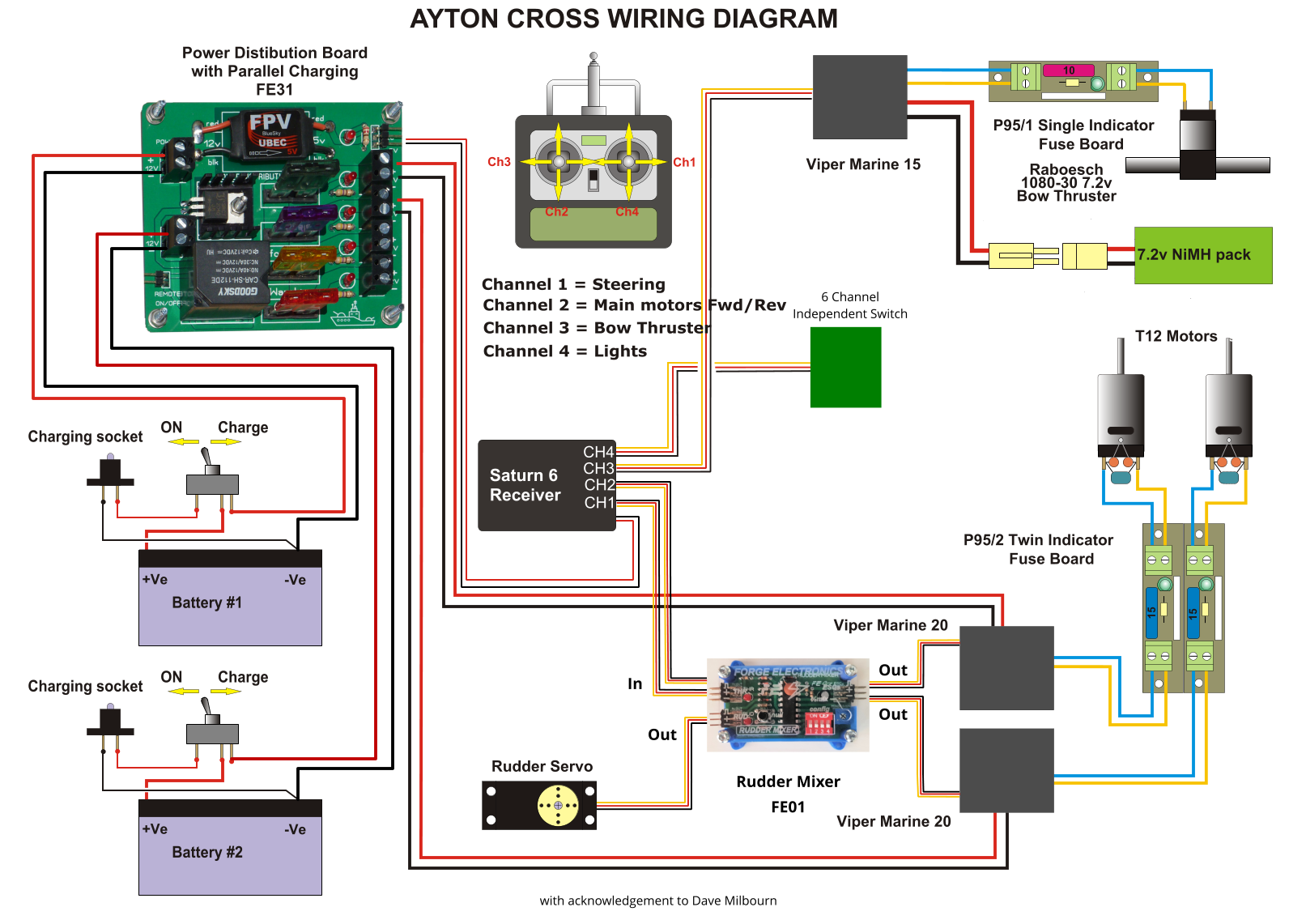

| This is the wiring diagram I put together. |
|
|
|

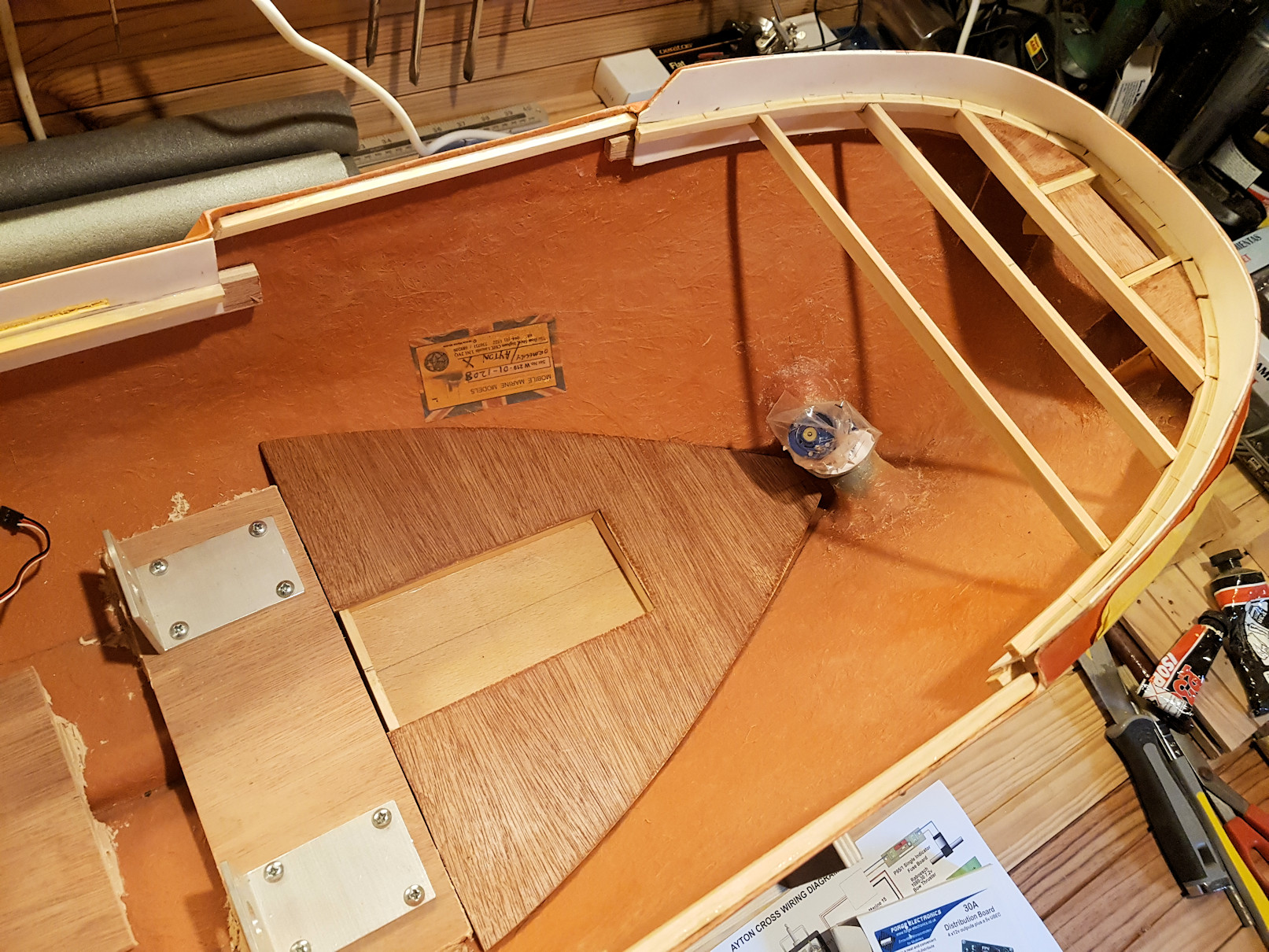

| Battery Trays and Wiring Board |
|
|
|

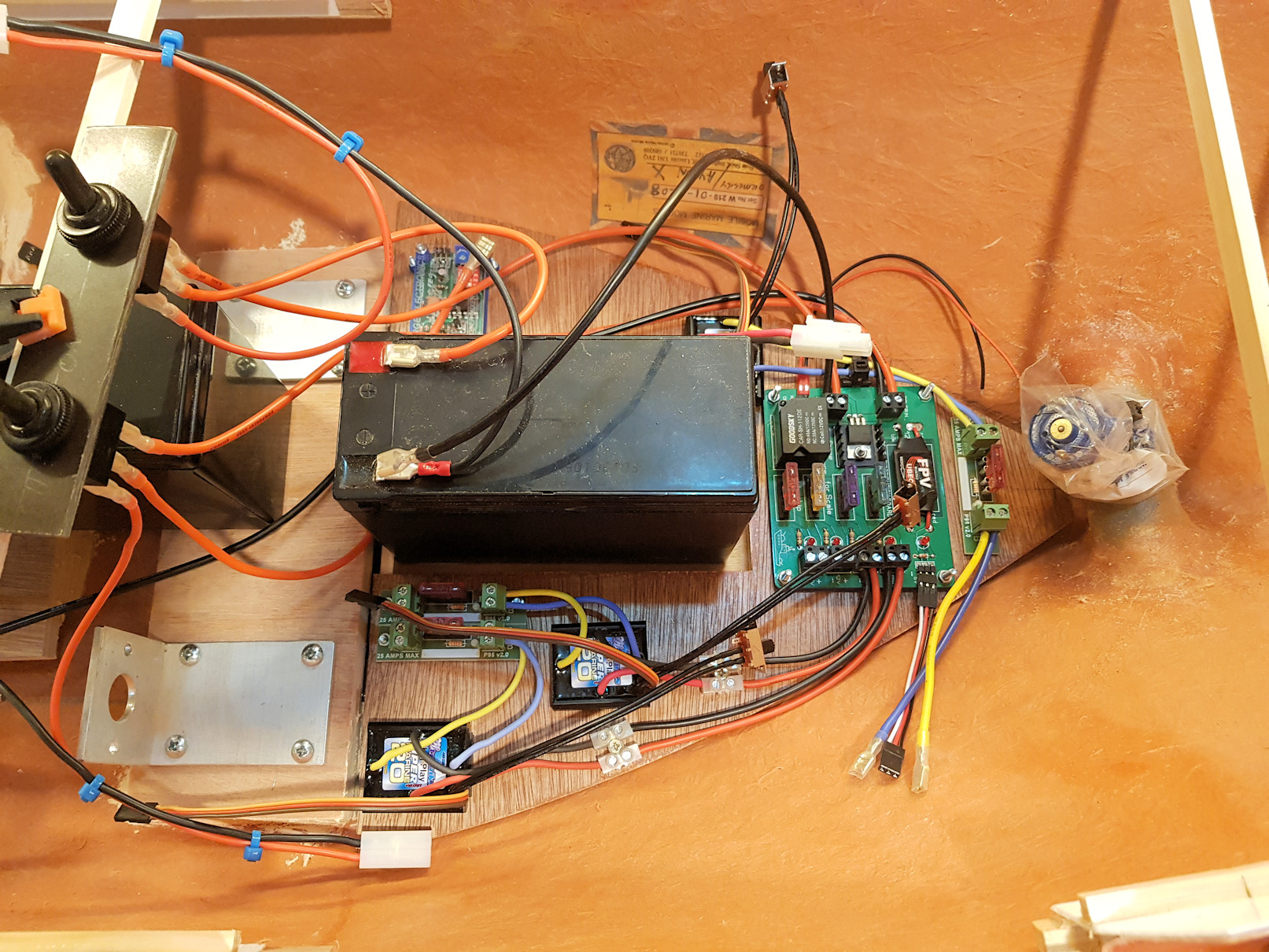

| Battery box and electrics board in place. The Saturn X6Ch RX that I bought is dead so I'll have to get another one and nobody seems to have any in stock, I might have to get XR6 instead. Also the rear 12v battery sitting on the motor mount board is too close to the deck, so I'll have to modify that mount. So on with other things ... |
|
|
|
| Motor mount board cut to drop rear 12v battery down a bit. |
|
|
|
| Modified rear battery box fabricated. |
|
|
| ? |
| ? |
