Ayton Cross tug build
The Build - Hull 1
| << previous | The Build | next >> |
Ayton Cross tug kit purchased from Mobile Marine Models
It was delivered on 19th December 2019
Begin basic hull preparation and measuring up before cutting holes for running gear
|
| As advised on the modelboatmayhem forum - its not safe to rely on the MMM castings marks for Korts, P-frame or Prop shafts, best only for an approximation. |
|
|
|

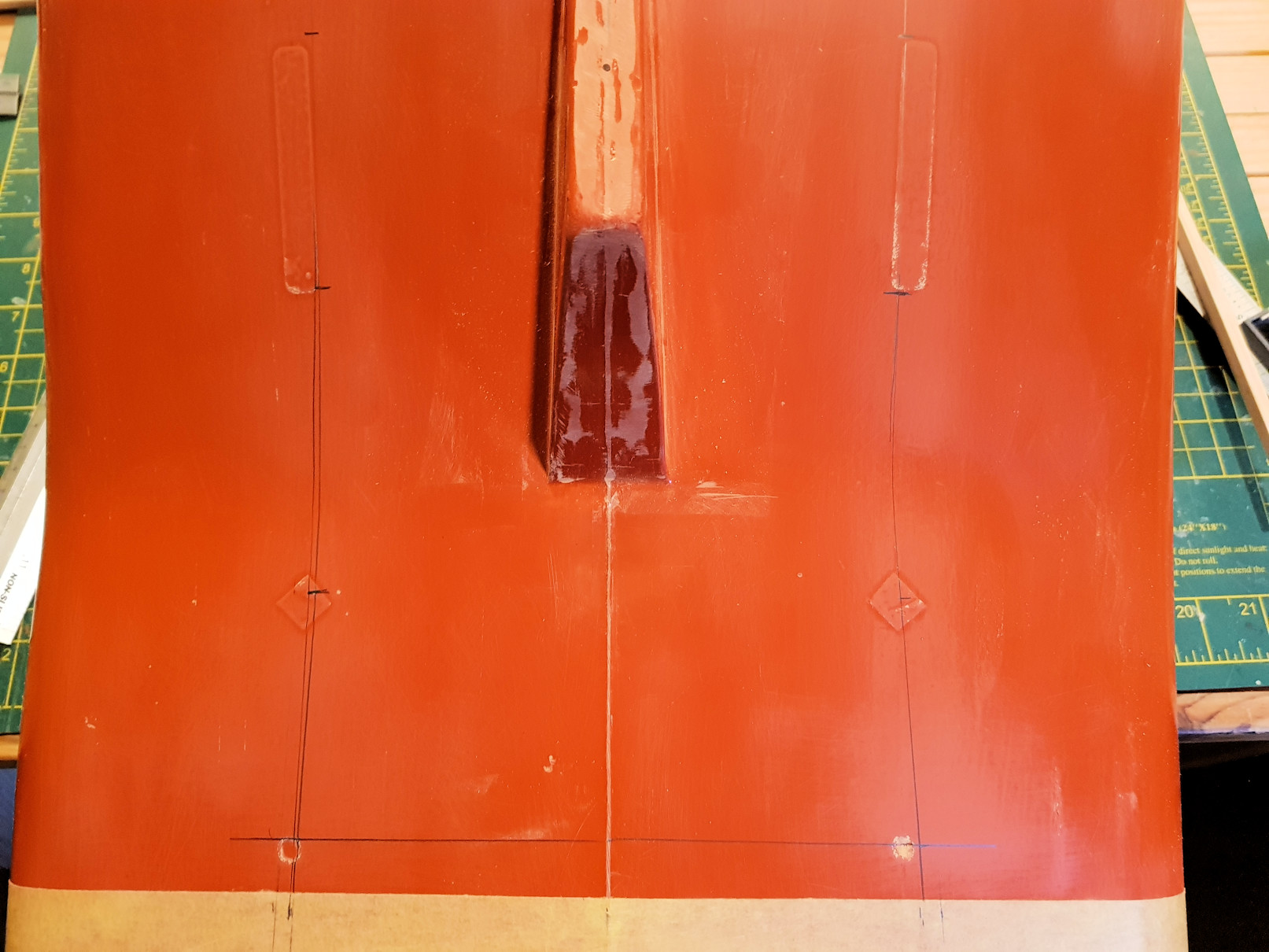

| Using some setsquares I set up a couple of parallel lines for the prop shafts and true enough the casting marks were a few mm out. |
|
|
|
| Holes made with a small pilot drill and then opened up with a stepper drill. |
|
|
|
| Power Kort nozzle packet |
|
|
|

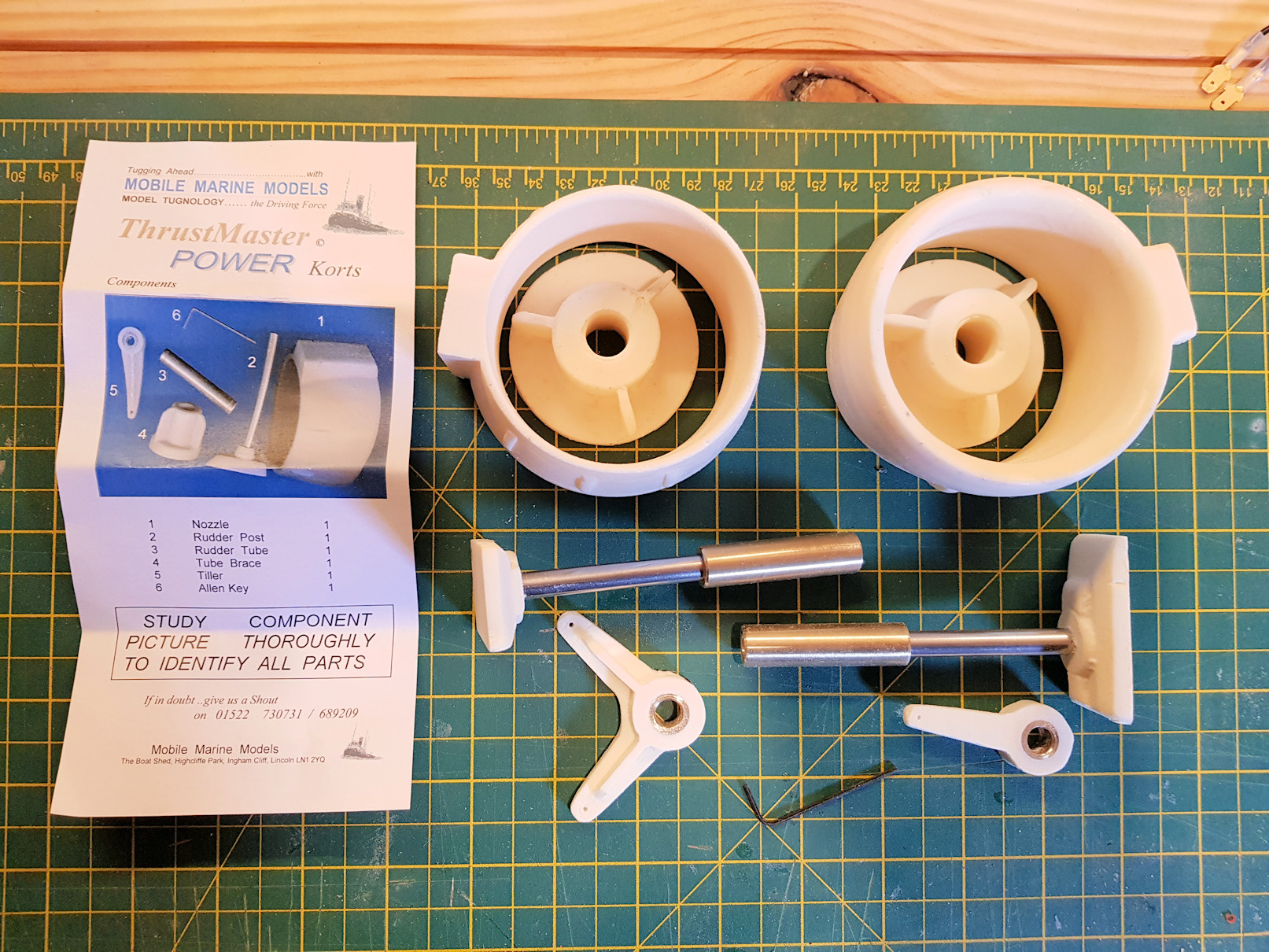

| Packet contents |
|
|
|

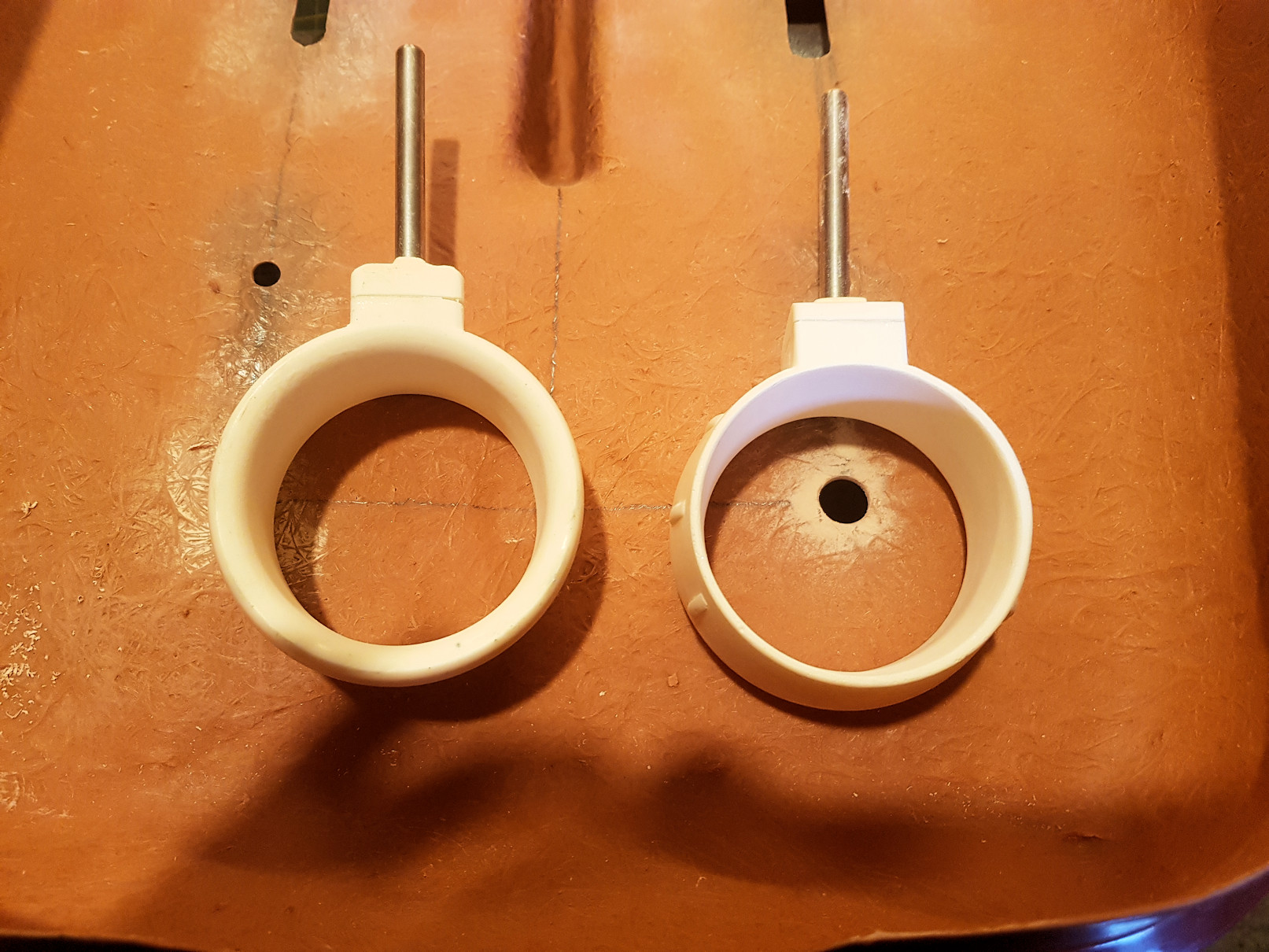

| Power Korts assembled |
|
|
|
| Motor mount board created for T12 motors |
|
|
|
| Boat stand made, still needs a bit of fettling |
|
|
|
| Starting to open up bow thruster holes |
|
|
|

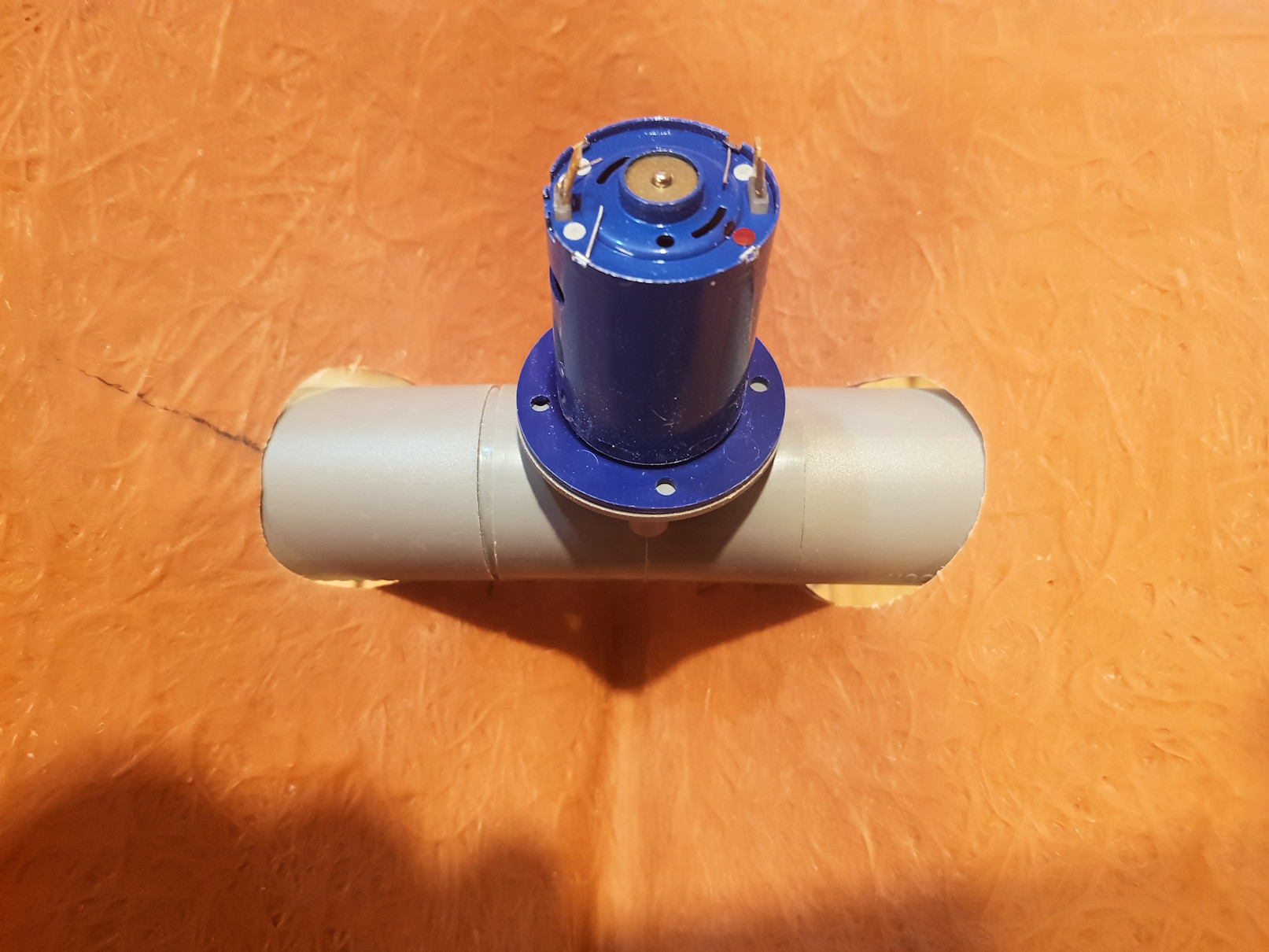

| Bow thruster in place |
|
|
|
| Ready for securing |
| << previous | The Build | next >> |
Created: 3rd December 2019 - - - - Last Updated: 26th December 2019
