Ayton Cross tug build
The Build - Hull 3
| << previous | The Build | next >> |
|
|
|

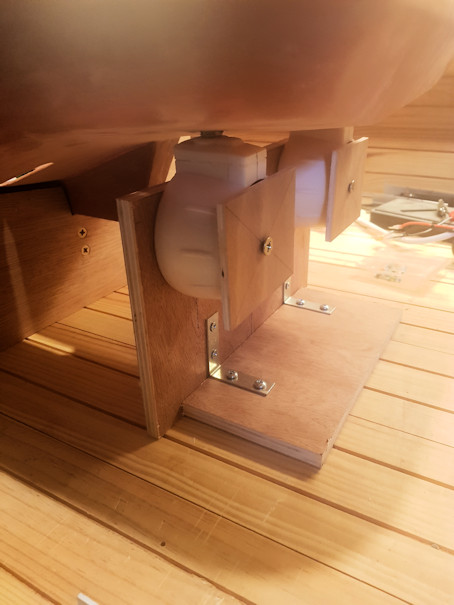

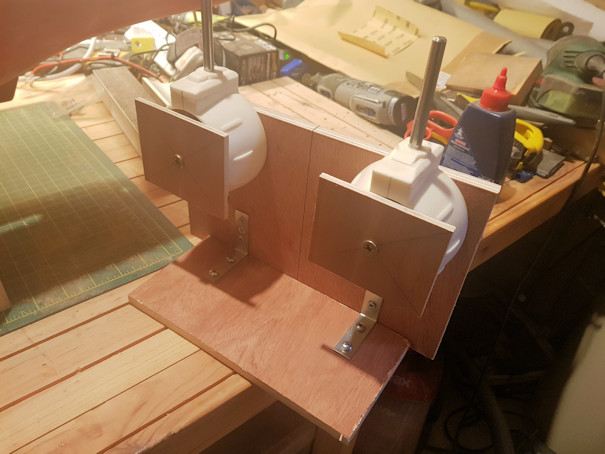

| Jig made to keep kort nozzles properly aligned |
|
|
|

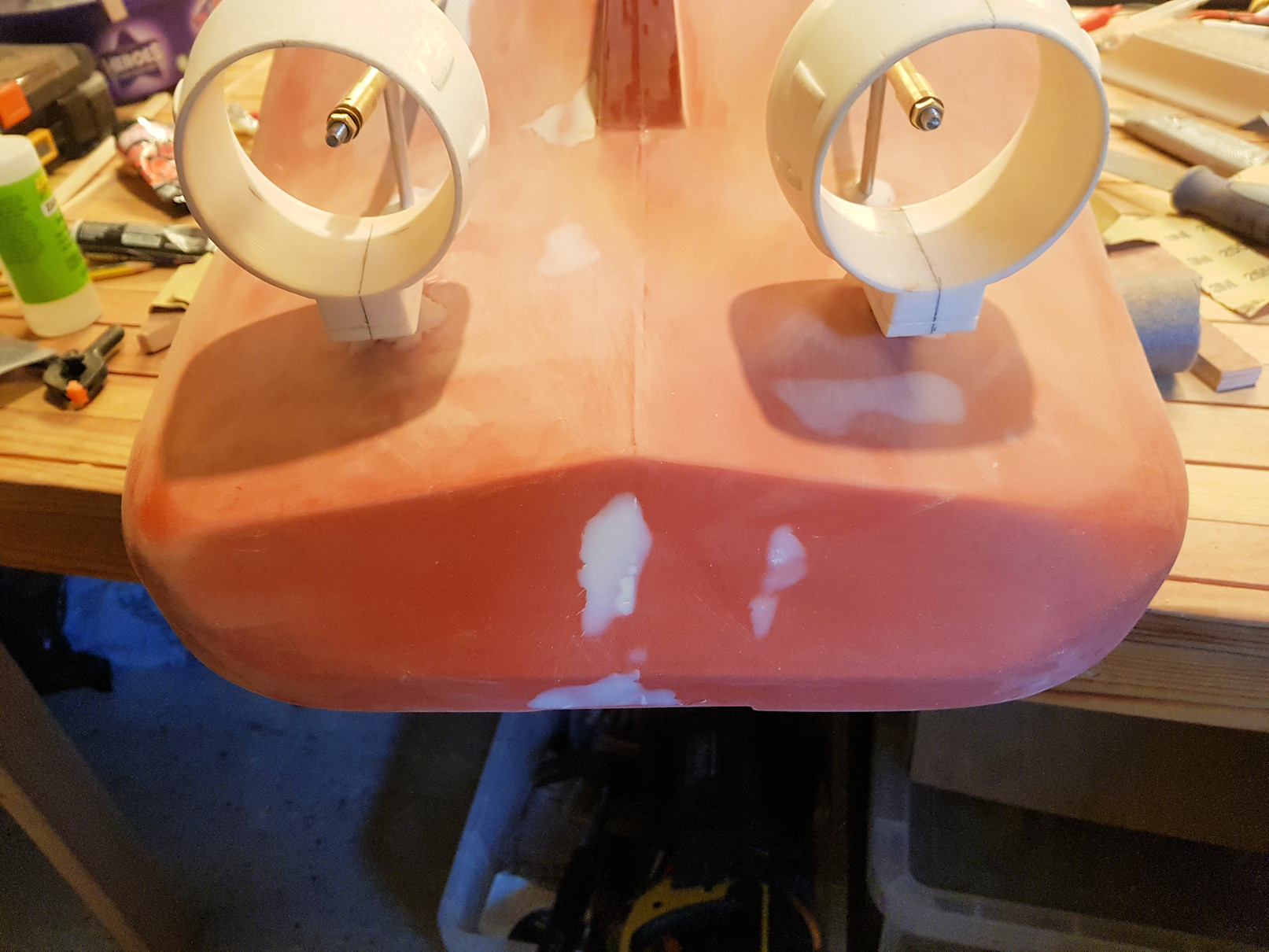

| kort nozzles held in place with the jig |
|
|
|

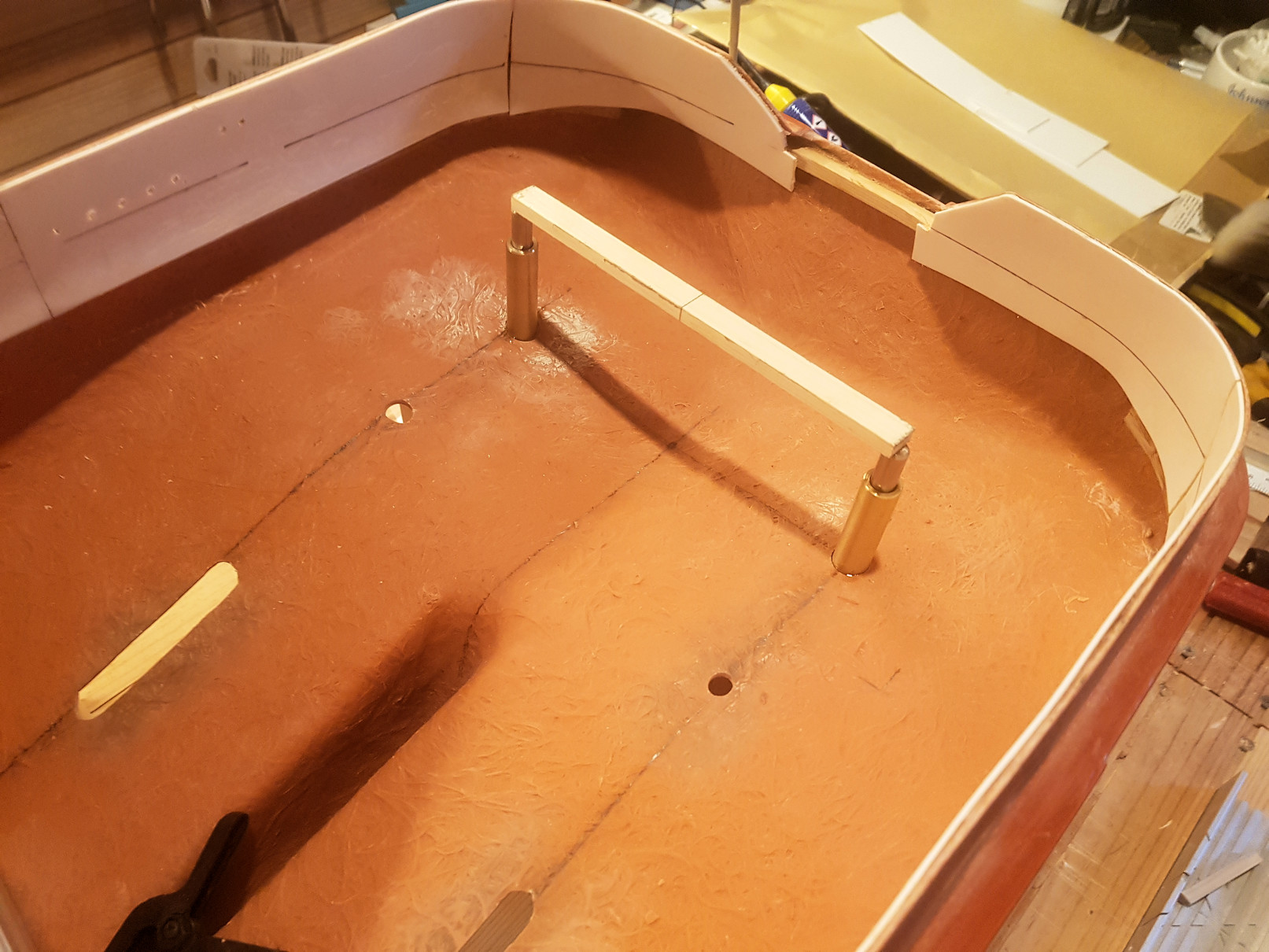

| Rudder tubes perfectly aligned and in the right place |
|
|
|
| Securing the Kort Brace and Rudder Tubes in place |
|
|
|

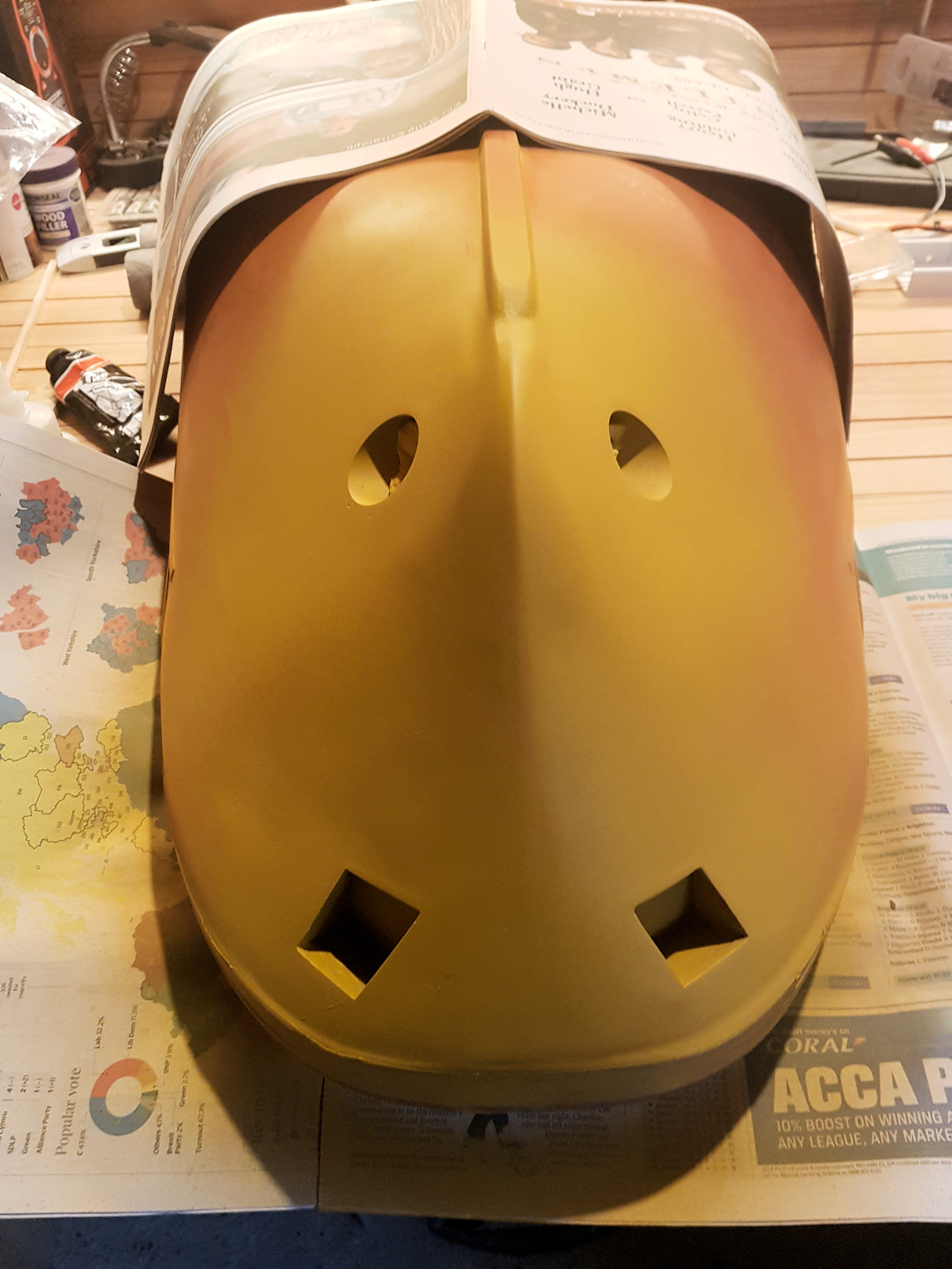

| Bow thruster and Anchor recessess faired and first coat of primer |
|
|
|

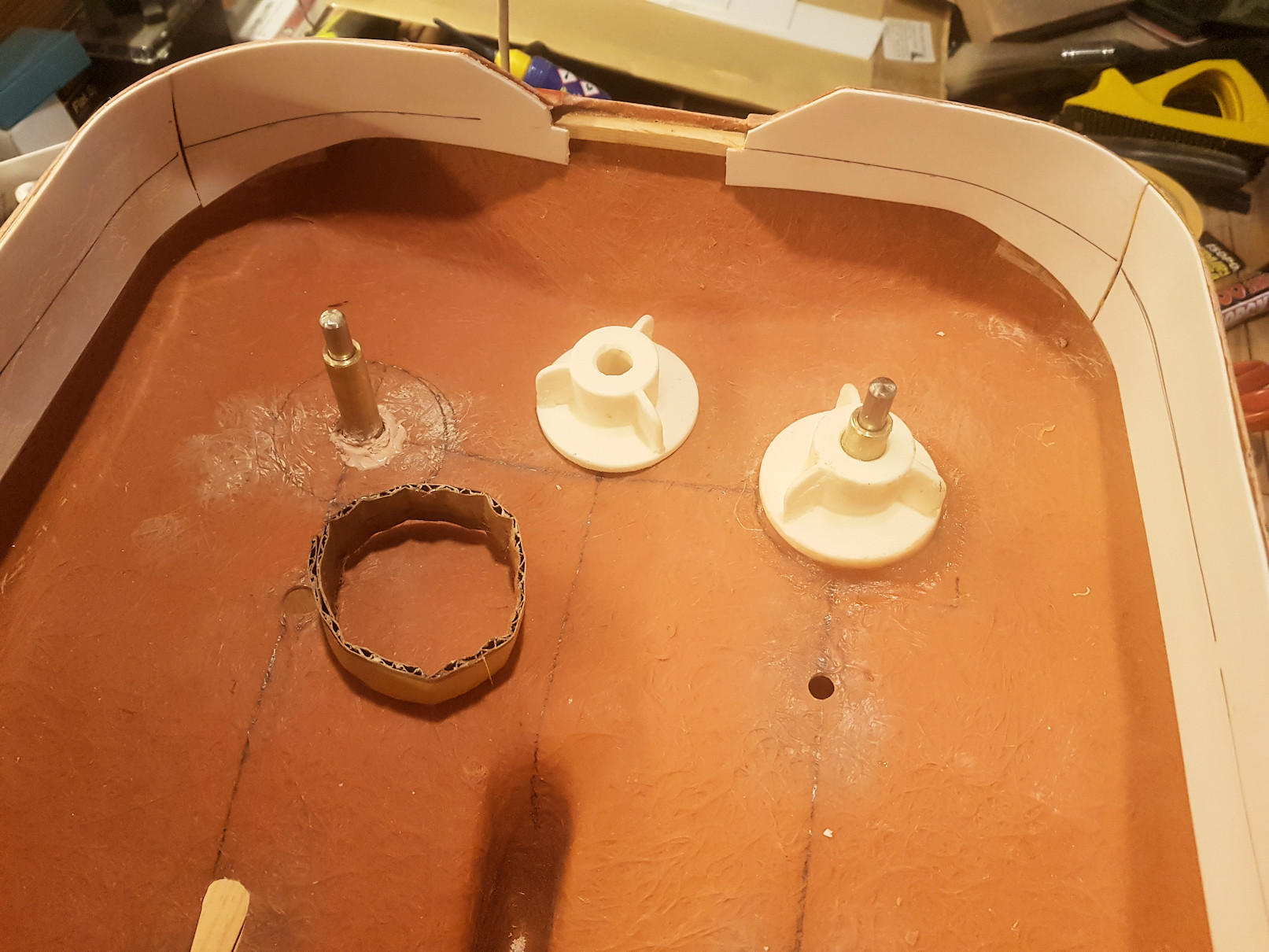

| Prop shafts aligned and fixed in place |
|
|
|

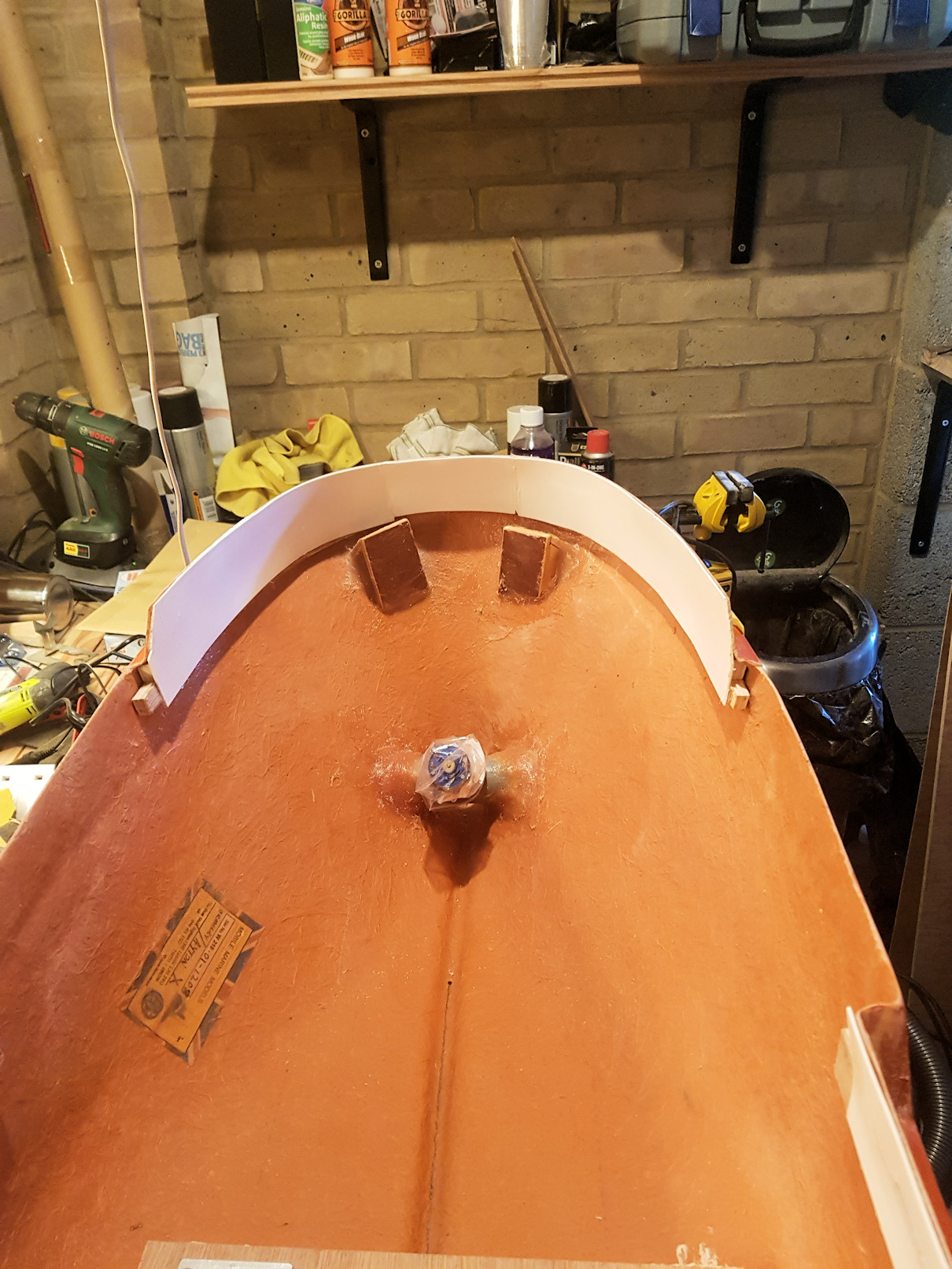

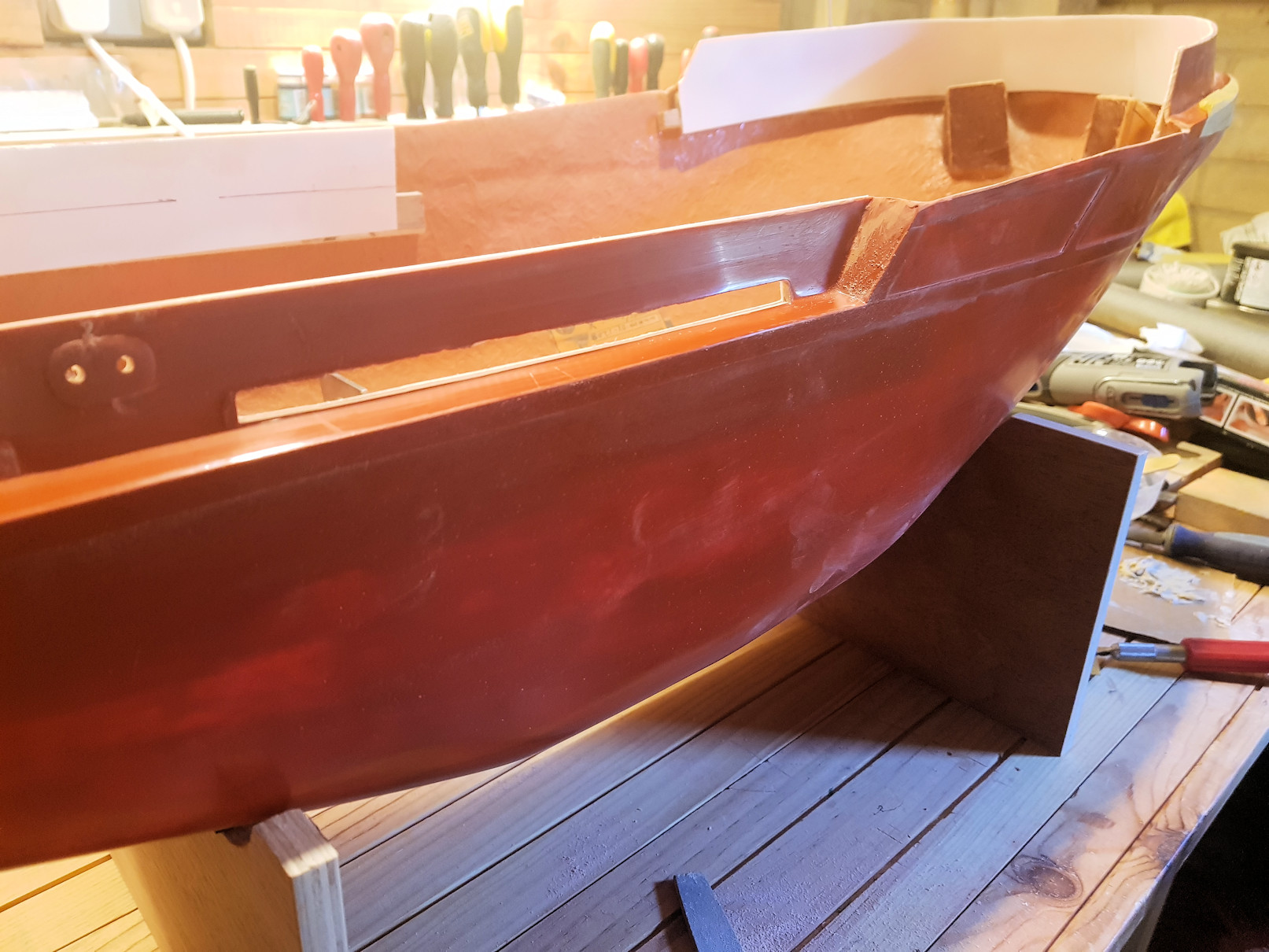

| Foc's'le Bulwarks lined with styrene |
|
|
|
| Opening up the freeing ports |
|
|
|
| Closing up the running gear openings |
|
|
|
| Korts in place. No dealers have got any props in stock!! |
|
|
|

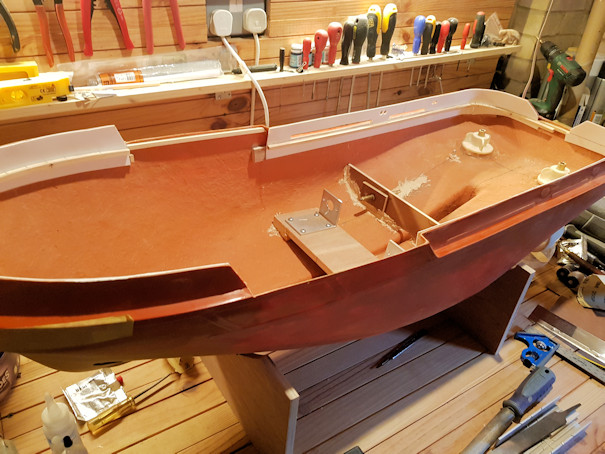

| Bulwarks all lined and started on the deck stringers |
|
|
|
| Foc's'le Deck beams and stringers fitted and battery tray and electrics board started. |
|
|
|

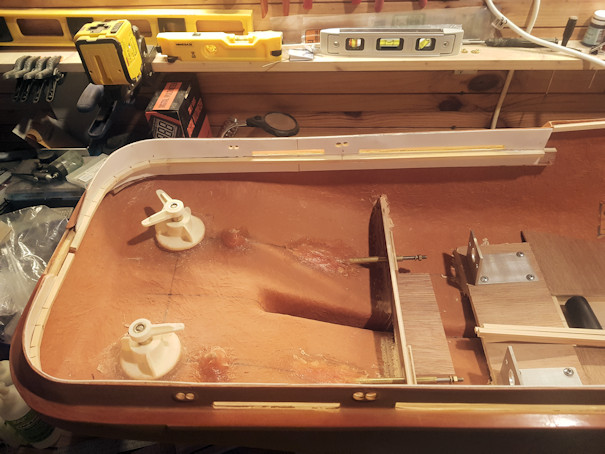

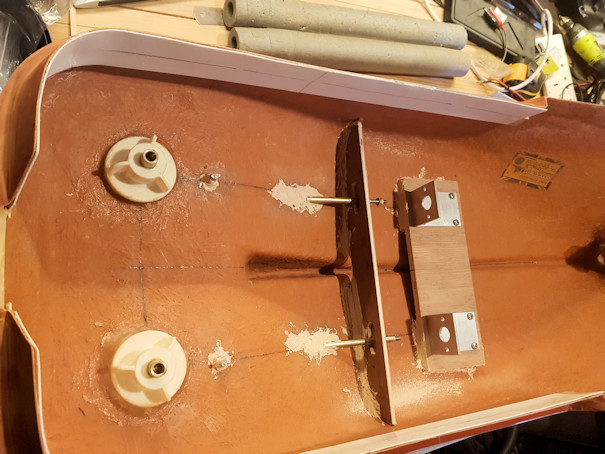

| Main deck stringers fitted, tiller arms fitted and freeing ports opened. |
|
|
|
| Servo mount made and servo fitted. |
|
|
|

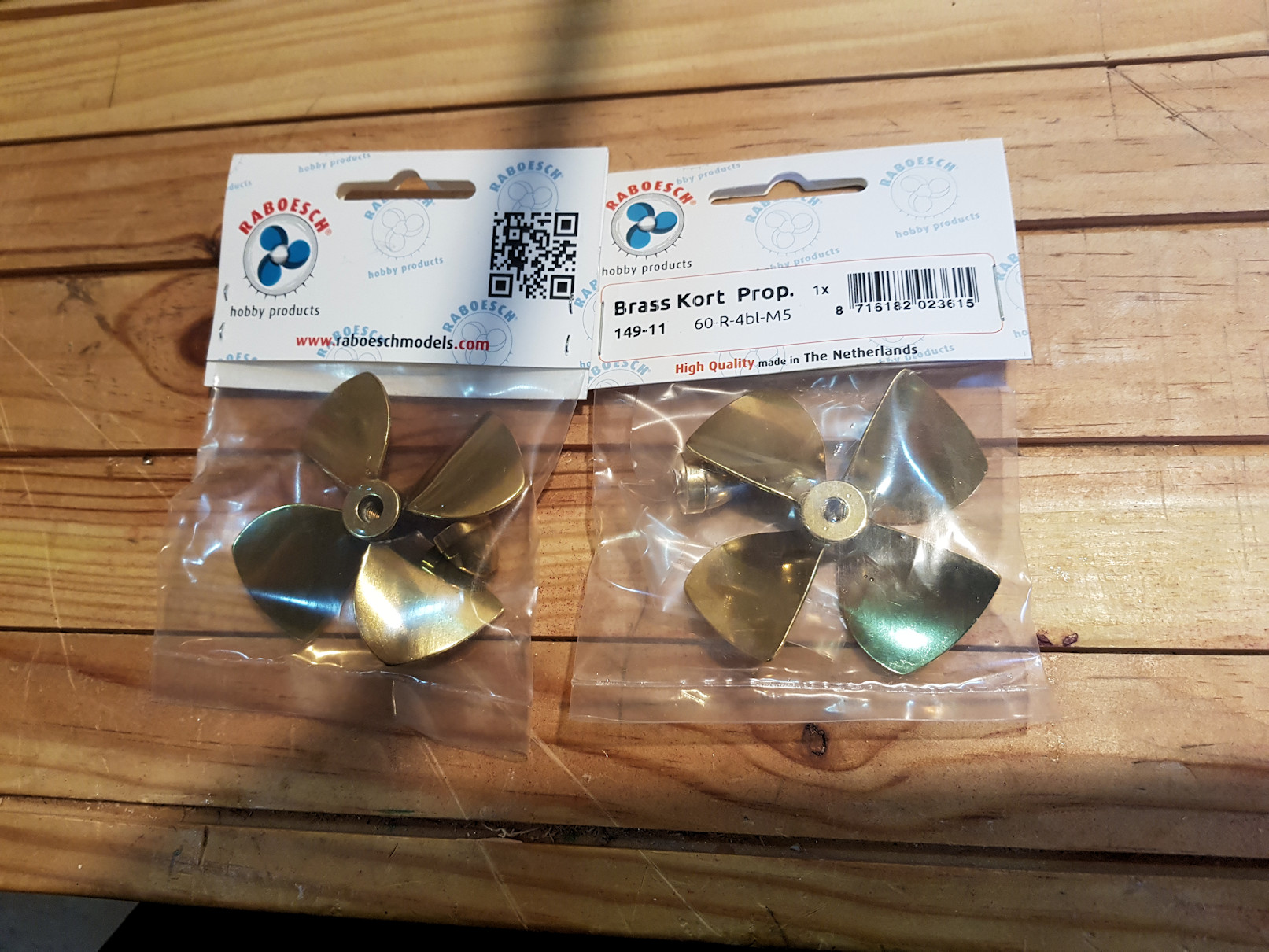

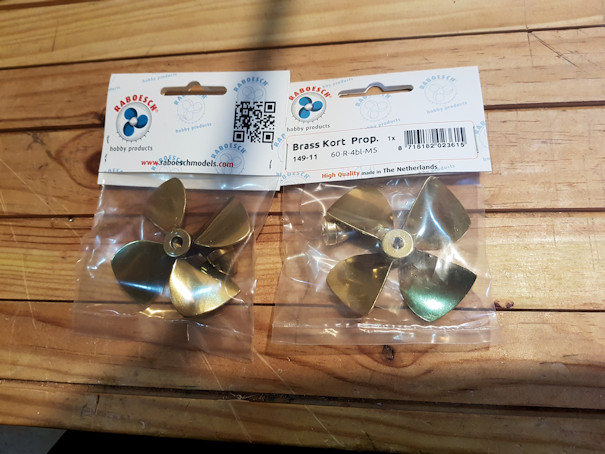

| After a struggle to get old of propellers boat a couple of Raboesch 60mm. |
|
|
|

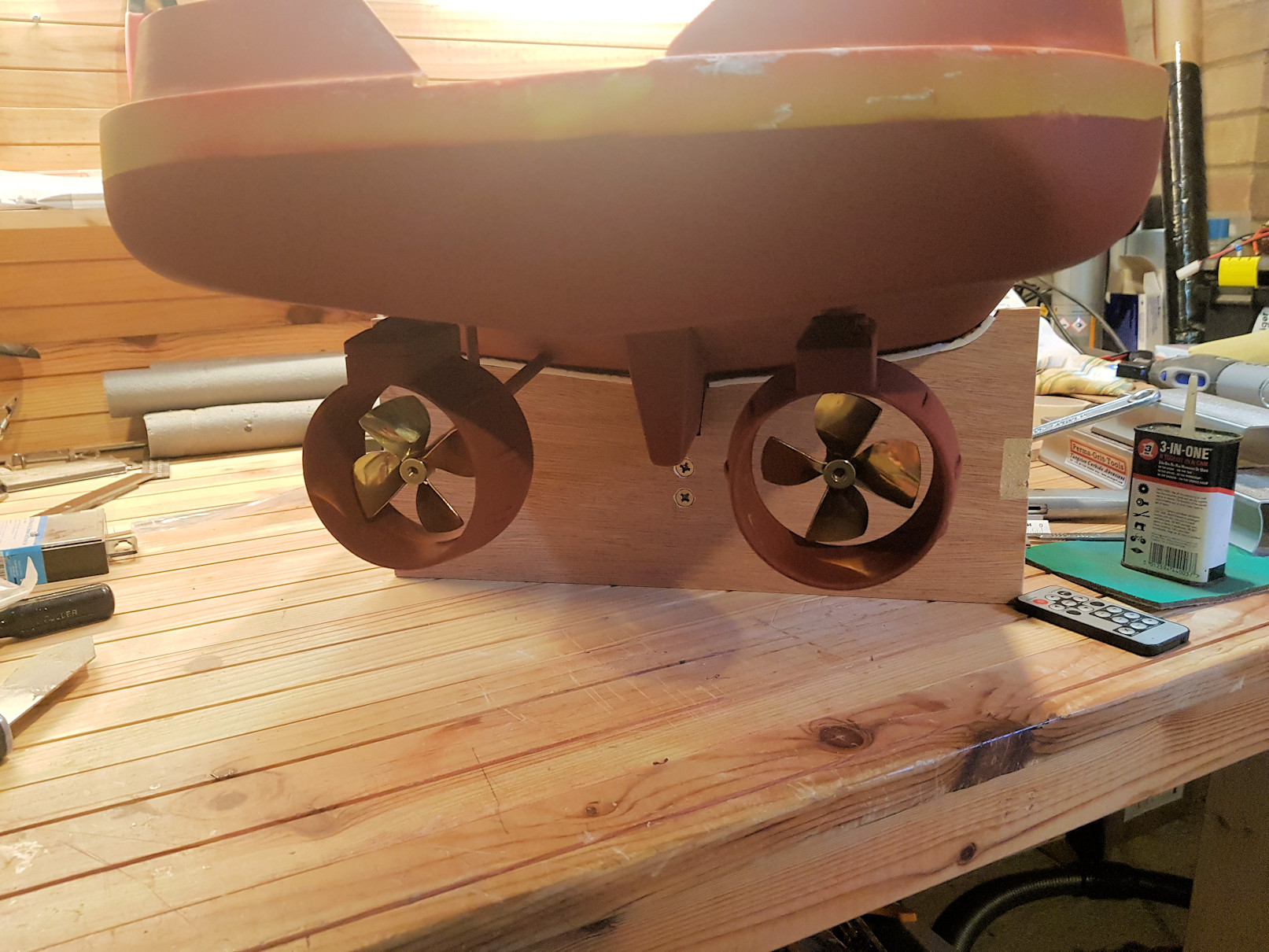

| Propellers fitted onto shafts, but is the leading edge curved or straight? |
| << previous | The Build | next >> |
Created: 1st January 2020 - - - - Last Updated: 31st January 2020
